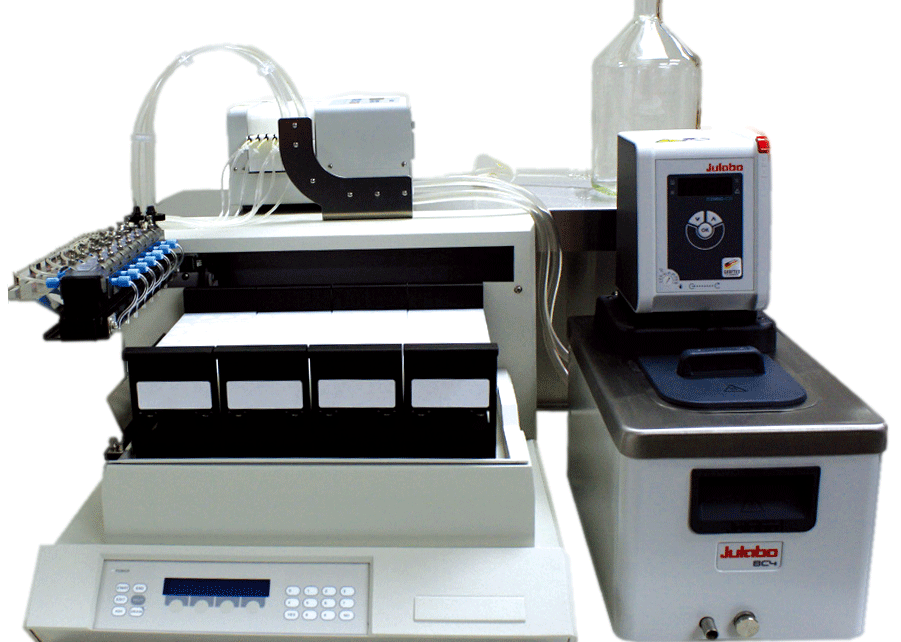

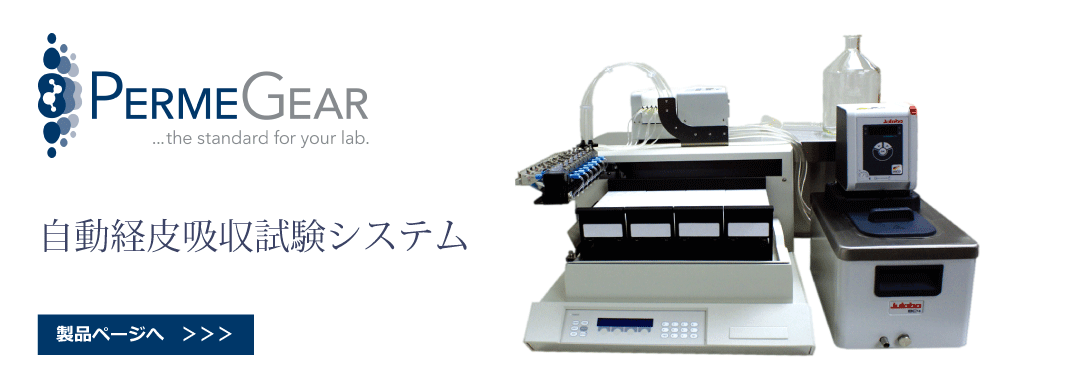

インラインセル自動経皮吸収試験システム ILC07

主な特徴




オールインワンの経皮吸収試験システム

労働集約型の経皮吸収試験での作業を経済性の高い自動システムで軽減します。フランツセル(縦型セル)で行うマニュアル作業を各系列毎のサンプリング時間、温度、レセプター流量をセットするだけで自動で行います。

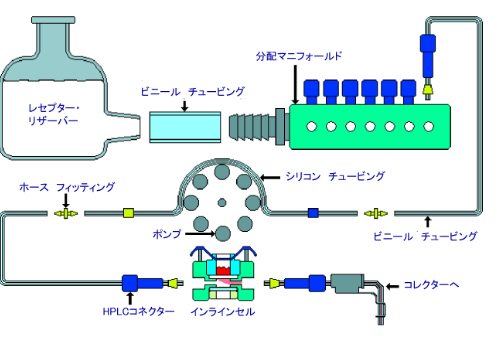

経皮吸収試験システムの構造

研究目的に最適な持続性フロー方式

試験中レセプター溶液は持続的にレセプターを通過してバイアル瓶へと流れます。この動きは実際にIn Vivoで起こる代謝に近いものとなります。また全自動システムとは異なりマニュアルの良さに効率性をミックスしていますのでアイデア次第で様々なオプションが可能です。

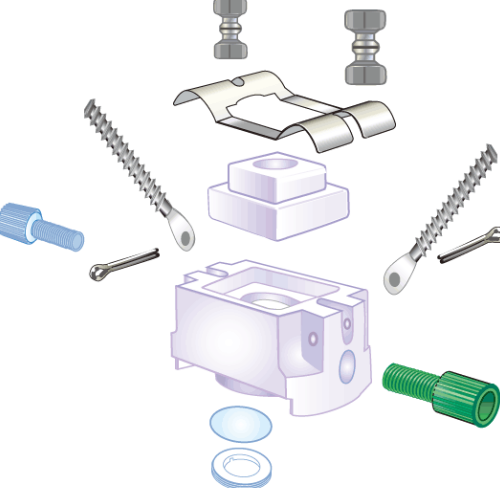

インライン拡散セルの分解図

低流量、分解洗浄可能なフロー型セル

レセプター容量(250~500μl)の縦型セルはより低流量でも一定のレプレースメントを実現できます。使用後の分解洗浄も可能。また使用されるネオフロン素材は吸着を強力に防止し、特殊なマーカーのようなものでも吸着しません。

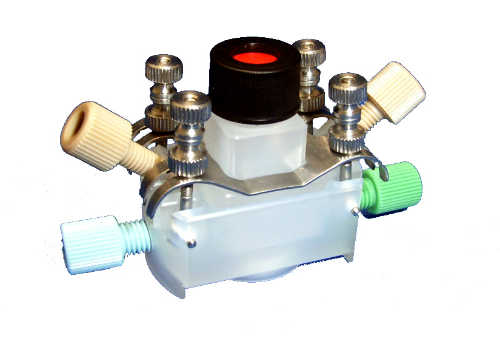

インライン拡散セル(ボラタイルセル)

拡張性、柔軟性に富む拡散セルも選択可能

部品を交換するだけで開口部のサイズが変更可能なセルや爪からの透過試験に対応するセルの装着も可能です。

参考文献

フランツセル及び専用ピペット

自動経皮吸収試験システムを使用した例

1. Brand RM, Mueller C, Transdermal penetration of Atrazine, Alachlor, and Trifluralin: Effect of formulation. Äsl211Äslmult0 Toxicological Sciences, 68:18-23, 2002.

2. Pont AR, Charron AR, Wilson RM, Brand RM, Effects of active sunscreen ingredient combinations on the Äsl211Äslmult0 topical penetration of the herbicide 2,4-dichlorophenoxyacetic acid. Toxicology and Industrial Health,
19:1-8, 2003.

3. Córdoba-Díaz M, Nova M, Elorza B, Córdoba-Díaz D, Chantres JR, Córdoba-Borrego M, Validation protocol of an automated in-line flow-through diffusion equipment for in vitro permeation studies. J. Controlled Release. 69:357-367, 2000.

4. Lesch CA, Squier CA, Cruchley A, Williams DM and Speight P. The permeability of human oral mucosa and skin to water. J Dent Res 68:1345-1349, 1989.

5. Squier, C.A., Kremer, M. and Wertz P.W. Continuous flow mucosal cells for measuring the in-vitro permeability of small tissue samples. J Pharm Sci 86(1): 82-84, 1997.

6. Squier, C.A., Kremer, M.J., Bruskin, A., Rose, A. and Haley, J.D. Oral Mucosal Permeability and Stability of Transforming Growth Factor Beta-3 In Vitro. Pharm Res 16(10): 1557-1563, 1999.

7. Du X., Squier C.A., Kremer M.J., Wertz P.W. Penetration of N-nitrosonornicotine (NNN) across oral mucosa in the presence of ethanol and nicotine. J Oral Pathol Med 29: 80-85, 2000

8. Senel, S., Kremer, M.J., Wertz, P.W. and Hill, J.R., Kas, S., Hincal, A.A. and Squier, C.A. Chitosan for intraoral peptide delivery. Chitosan in Pharmacy and Chemistry, Muzzarelli, R.A.A. and Muzzarelli, C. Eds., Äsl211Äslmult0 pp. 77-84 Atec, Italy, 2002.

9. Davis, C.C., Kremer, M.J. Schlievert, P.M. and Squier, C.A. Penetration of toxic shock syndrome toxin-1 across porcine vaginal mucosa ex vivo: permeability characteristics, toxin distribution and tissue damage. Äsl211Äslmult0 Am J. Obstet Gynecol 189:1785-1791, 2003.
